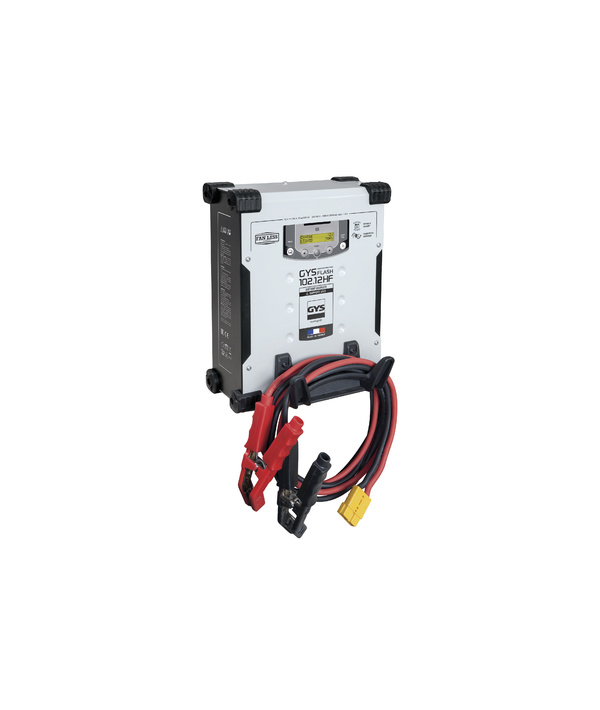

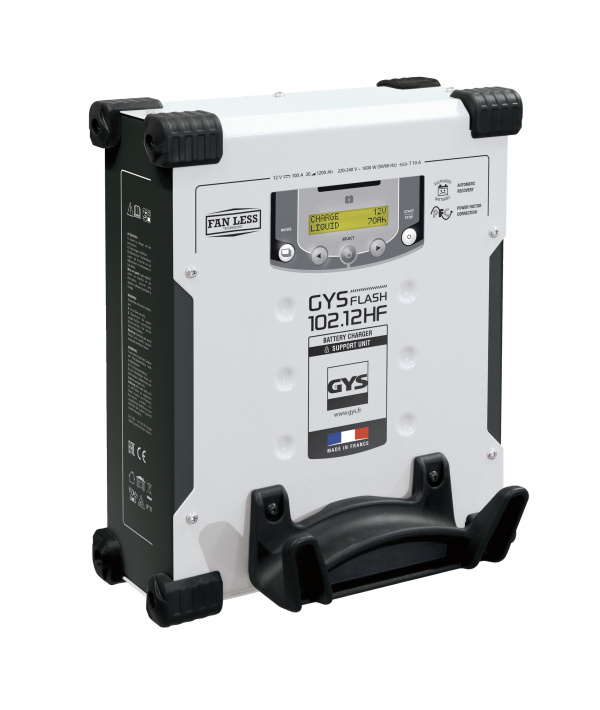

Battery charger Lead 12V 100A from 20 to 1200Ah GYSFLASH 102.12 HF

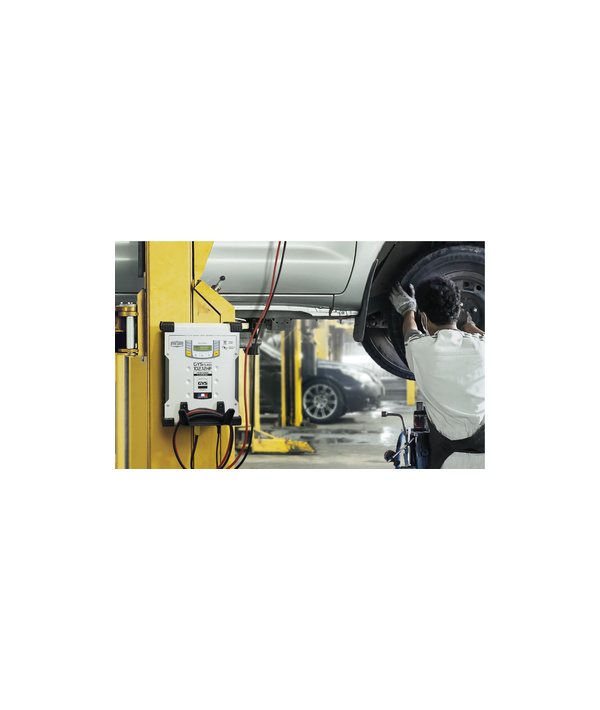

Specially designed to be attached to a wall or lift, the GYSFLASH Vertical 102.12 is a high-powered 100 A charger with inverter technology. It keeps a 12V battery at a perfectly stabilized voltage during the diagnostic phases. It also guarantees optimal load quality for the maintenance of the most advanced vehicles.
5 MODES OF USE
- Charge: for 12V batteries (liquid/AGM/freeze) from 20 to 1200 Ah.
- Diag: supports up to 100 A the 12V batteries of vehicles in the diagnostic phase.
- Battery Change: compensates for electrical needs to save vehicle memories during a battery change.
- Power Supply: adapts the charger to stabilized power with adjustable voltage and maximum current.
- Showroom: provides the battery with power compensation when using the electric accessories of a demonstration vehicle.
ADVANCED FUNCTIONS
- "Auto Restart" function in case of power outage with memory of settings.
- Control and calibration of cables, the charger can receive cables up to 2x8 m in 16 mm2.
- Locking in Showroom mode, avoids the risk of mishandling, ideal for garages and exhibition hall.
- 4 charge curves available, including Easy mode for a simplified charge suitable for all lead batteries.
- Activating and setting up an "Expert" charge curve.
100% AUTOMATIC CHARGE
- The load and maintenance 9 steps unsupervised maximize battery life and performance.
- It recovers the deeply discharged batteries >2 V (SOS Automatic Recovery).
ULTRA-SECURE
- Preserves the vehicle's on-board electronics: protection from short circuits, polarity reversal and overload. Anti-sparking system.
- Interchangeable Fuse protects against handling errors.
- Temperature sensor prevents overheating of internal electronics.
- Automatic sleep if the battery is disconnected.
Ergonomic

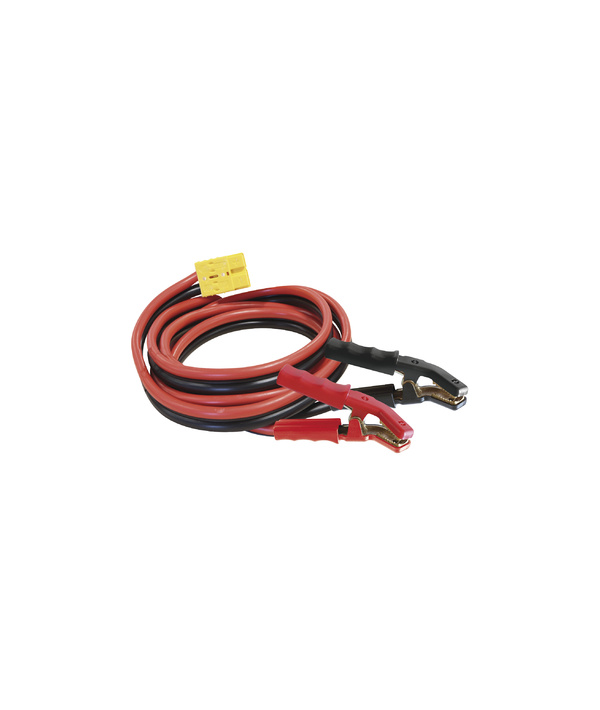

- Compact and sturdy case with cable coiler (2 x 5 m) on the front.
- Skates absorbing shocks and vibrations.
- Wall attachment with optional slide or magnet system (Magnetfix 029637)
- EAN : 3154020029606
- Weight (Kg): 8.920
- Length (mm): 295
- Width (mm): 117
- Height (mm): 345
- Type of load: Lead
- Load range 12 V
- Type: Charger
- Power 100 A
- Model: Original manufacturer
- Warranty / year: 1
- Weee 0.3
