20W solar panel MJU02X Daitem

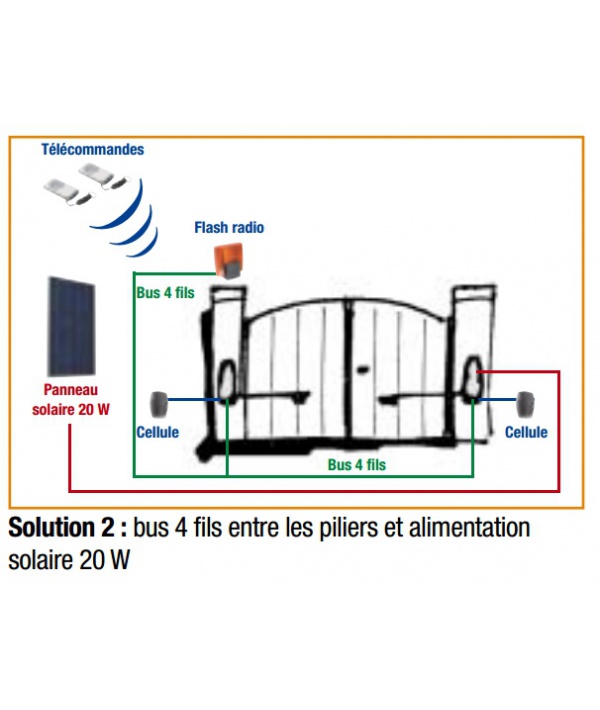

for power supply of Portal automatic solarmatic generation

Compatible with an automatic sliding or double in the absence of sector gate. Solar energy stored in batteries for the operation of the engine allows a use of the portal in all circumstances, even in the event of prolonged power failure (autonomy over 100 Mana works).
20W solar panel provides a powerful power throughout the french territory.

Technical characteristics

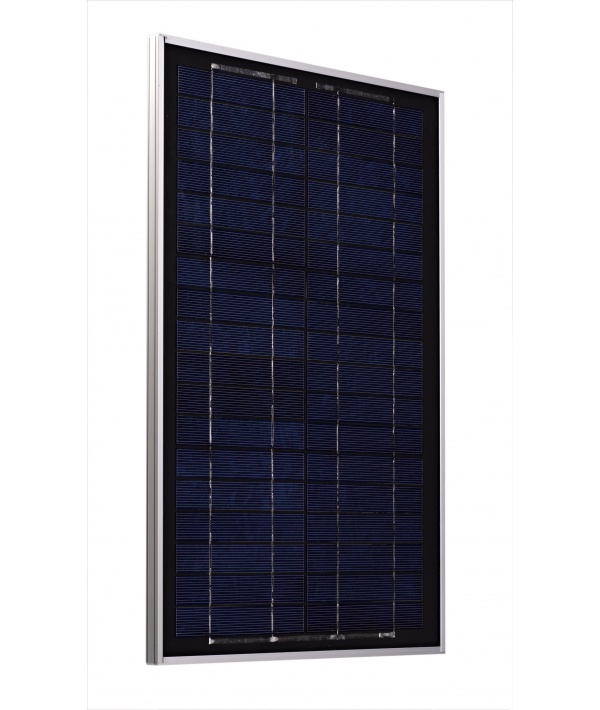

• 20 W Polycrystalline Solar Panel
• 20 W under sunshine of 1000 W/cm2 (25 ° C), AM1.5
• Operating temperature:-20 ° C to + 50 ° C
• Relative humidity: 50-95%
• Wind: 150 da N/m2
• Hail: diameter 15 mm to 18 m/s
• No-load voltage: 22 V
• Short-circuit current: 520 mA

Delivered without mounting accessories

Warranty 2 years
